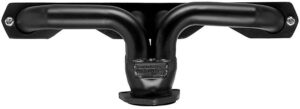

Sanderson CC2 header set CC2 Header Set, Small Block Chevy $358.93 – $585.62

CC1LS158 Header Set, GM LS Engines

$472.27 – $698.96

The CC1LS158 header set fits GM LS-series engines in a variety of 1927-up cars and trucks, including aftermarket chassis applications.

Sanderson CC1LS1 header set
CC1LS158 Header Set, GM LS Engines $472.27 – $698.96
SKU: CC1LS158 Categories: , , , , , Tags: , , , , ,

Have Questions? Please Ask!

Sanderson Headers - No Gaskets

The CC1LS158 block hugger header set fits 1927 and later cars and trucks with GM LS1, LS2, LS3, LS4, LS6, and LS7 engines. Also fits many LS swaps into Jeep applications.

This new design places the collector slightly off-center, and being only 7¾” from the center of the flange to the bottom of the collector provides ample room for the tightest fit in a variety of vehicle applications.

The CC1LS158 is one of the most popular headers for aftermarket chassis applications from TCI, Heidts, Chassisworks, and others. Also available in a smaller 1-1/2″ primary tube version, part #CC1LS1.

Includes all hardware necessary for installation.

SPECIFICATIONS:

Engine: GM LS1, LS2, LS3, LS4, LS6, LS7
Primary Tube Diameter: 1½”
Collector Diameter: 2½”

FEATURES:

  • 16-Gauge Primary and Collector Tube Thickness
  • 3/8″ Thick Flange
  • Patented Flange Design Requires NO Gaskets
  • Tightest Fitting Header Available Anywhere!
  • Made in the USA

INCLUDES:

  • Header Bolt Set
  • Collector Reducer Set

FINISH:

Our Ceramic Coating is recommended for every vehicle application and is the default finish selection choice above. To meet high standards of quality, We apply a multi-layer inside and outside aluminized ceramic coating in-house and then polish the coating to a high luster. This aerospace and military-grade technology adds excellent protection to your headers while offering the benefit of thermal control in your engine bay. It also improves cylinder scavenging of exhaust gases and increases the longevity of your header investment.

Additional information

Weight17 lbs
Dimensions17 × 12 × 7 in
Header Finish

Silver Ceramic Coated, Black Satin Ceramic Coated, Plain Steel (raw metal)

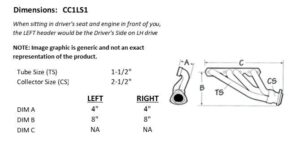

Dimensions

Sanderson CC1LS158 dimension graphic

Installation Notes

  1. The Patented Leak-Free Design on Sanderson Headers provides the only leak-free flange design on the market … Do Not Attempt To Use Flange Gaskets! The raised flange on tube-style Sanderson Headers will buckle the gasket during tightening and actually cause a leak!  It is only OK to use a header gasket on the cast-series header sets (QP1000 and QP2000) Click here for the header installation procedure.
  2. Sanderson Headers are NOT emissions legal on pollution-controlled motor vehicles. It is the purchaser’s responsibility to verify local regulations for compliance.
  3. Wrapping your Sanderson Headers with ANY thermal tape voids your header warranty. The best thermal protection for your headers is our Aluminized Ceramic Coating which is available for every Sanderson Header. For additional information on why using header wraps is a problem, please read this tech article by Century Performance Center which addresses thermal coatings and header wraps.

Header Warranty

Sanderson Header WarrantyLimited 5-Year General Warranty

Sanderson Street Rod Headers strives to supply our customers with the highest quality parts and services available in the street rod industry. In keeping with this, we warrant and will repair or replace, at our option after an inspection in our facility, any of our products that are found by us to have failed due to defects in either material or workmanship.  This warranty is activated by the return of the Warranty Card enclosed with every pair of headers and is effective for FIVE YEARS * from the date of purchase as indicated on the original invoice.

This Warranty does not cover products that fail due to improper motor tuning, alteration, disassembly, or damage caused by racing, misuse, neglect, abuse, improper installation, and/or accident, or when used on applications for which they were not designed or approved. We are specifically not responsible for the costs of removal, installation, transportation, destruction of other components, inconvenience, loss of time, or other personal damages, or for any other associated costs including the application of aftermarket coatings applied by others. Sanderson Street Rod Headers shall not be liable for any and all consequential damages occasioned by the breach of any written or implied warranty pertaining to this sale in excess of the purchase price of the product(s) as found on the original invoice.

WRAPPING HEADERS WITH THERMAL TAPE VOIDS THE WARRANTY.

* Extremely compact header designs that locate the collector in close proximity to the exhaust ports are very sensitive to engine tuning. Improper air/fuel mix or timing of ignition and/or valvetrain can cause early failure due to excessive heat. For this reason,  part numbers CC2 and CC3 are offered with a two-year warranty period only. This includes header sets that utilize one of these headers as part of the set (part numbers CC4 and CC14 for example). The compact header side will hold a 2-year warranty. All other Warranty conditions apply.
