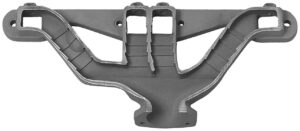

Sanderson QP1000 Cast-Series Header Set QP1000 Cast-Series Header Set, Small Block Chevy Price range: $562.00 through $786.80

PF1 Header Set, Pontiac Firebird, 389-400

Price range: $577.76 through $924.37

The PF1 header set fits 1967-69 Pontiac Firebird applications using the 389-400 Pontiac engine.

Add to Cart
Sanderson PF1 header set
PF1 Header Set, Pontiac Firebird, 389-400
$577.76 – $924.37Price range: $577.76 through $924.37
SKU: PF1 Categories: , Tags: , ,

Sanderson PF1 header set
PF1 Header Set, Pontiac Firebird, 389-400
$577.76 – $924.37Price range: $577.76 through $924.37

The PF1 header set fits 1967-69 Pontiac Firebird applications using the 389 or 400 Pontiac V8 engine. The PF1 offers excellent fit and noticeable performance gains. The PF1 is offered in two flange styles, either the standard OE-style D-port (center two ports) or the aftermarket (round port) cylinder head design.

Includes all hardware necessary for installation.

SPECIFICATIONS:

Engine: Pontiac 389/400 V8
Primary Tube Diameter: 1-5/8″
Collector Diameter: 2-1/2″

FEATURES:

  • 16-Gauge Primary and Collector Tube Thickness
  • 3/8″ Thick Flange
  • Patented Flange Design Requires NO Gaskets
  • Tightest Fitting Header Available Anywhere!
  • Made in the USA

INCLUDES:

  • Header Bolt Set
  • Collector Reducer Set

FINISH:

Our Ceramic Coating is recommended for every vehicle application and is the default finish selection choice above. To meet high standards of quality, We apply a multi-layer inside and outside aluminized ceramic coating in-house and then polish the coating to a high luster. This aerospace and military-grade technology adds excellent protection to your headers while offering the benefit of thermal control in your engine bay. It also improves cylinder scavenging of exhaust gases and increases the longevity of your header investment.

Additional information

Weight 17 lbs
Dimensions 23 × 12 × 9 in
Header Finish

Silver Ceramic Coated, Black Satin Ceramic Coated, Plain Steel (raw metal)
Pontiac Exhaust Ports

OE Style D-Port (Center Ports), Aftermarket Head (Round Port)

Reviews

There are no reviews yet.

Be the first to review “PF1 Header Set, Pontiac Firebird, 389-400”

Dimensions

Sanderson PF1 dimension graphic

Header Warranty

Sanderson Header WarrantyLimited 5-Year General Warranty

Sanderson Street Rod Headers strives to supply our customers with the highest quality parts and services in the street rod industry. In keeping with this, we warrant and will repair or replace, at our option, after an inspection in our facility, any of our products that we found to have failed due to defects in either material or workmanship.  This warranty is activated by the return of the Warranty Card enclosed with every pair of headers. It is effective for FIVE YEARS * from the date of purchase, as indicated on the original invoice.

This Warranty does not cover products that fail due to improper motor tuning, alteration, disassembly, or damage caused by racing, misuse, neglect, abuse, improper installation, and/or accident or when used on applications that were not designed or approved. We are specifically not responsible for the costs of removal, installation, transportation, destruction of other components, inconvenience, loss of time, or other personal damages or for any other associated costs, including the application of aftermarket coatings applied by others. Sanderson Street Rod Headers shall not be liable for any and all consequential damages occasioned by the breach of any written or implied warranty pertaining to this sale in excess of the purchase price of the product(s) as found on the original invoice.

WRAPPING HEADERS WITH THERMAL TAPE VOIDS THE WARRANTY.

* Extremely compact header designs that locate the collector close to the exhaust ports are very sensitive to engine tuning. Improper air/fuel mix or timing of ignition and/or valvetrain can cause early failure due to excessive heat. For this reason,  part numbers CC2 and CC3 are offered with a two-year warranty period only. This includes header sets that utilize one of these headers as part of the set (part numbers CC4 and CC14, for example). The compact header side will hold a 2-year warranty. All other Warranty conditions apply.

Downloadable Version

Installation Notes

  1. The Patented Leak-Free Design on Sanderson Headers provides the only leak-free flange design on the market … Do Not Attempt To Use Flange Gaskets! The raised flange on tube-style Sanderson Headers will buckle the gasket during tightening and cause a leak!  It is only OK to use a header gasket on the cast-series header sets (QP1000 and QP2000) Click here for the header installation procedure.
  2. Sanderson Headers are NOT emissions legal on pollution-controlled motor vehicles. It is the purchaser’s responsibility to verify local regulations for compliance.
  3. Wrapping Sanderson Headers with ANY thermal tape voids the header warranty. Our Aluminized Ceramic Coating is the best thermal protection for your headers and is available for every Sanderson Header. For additional information on why using header wraps is a problem, please read this tech article by Century Performance Center which addresses thermal coatings and header wraps.
