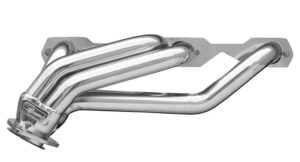

Sanderson CC11 header set CC11 Header Set, Small Block Chevy $358.93 – $585.62
Sanderson CC13 header set CC13 Header Set, SB Chevy V8 Vega and Monza $358.93 – $585.62

CC12 Header Set, Small Block Chevy, Chevelle El Camino

$358.93 – $585.62

The CC12 header set fits small block Chevy engines in 1964-77 Chevelle and El Camino applications using a manual transmission with factory linkage.

Sanderson CC12 header set
CC12 Header Set, Small Block Chevy, Chevelle El Camino $358.93 – $585.62
$
SKU: CC12 Categories: , , , Tags: , ,

Have Questions? Please Ask!

Sanderson Headers - No Gaskets

The CC12 header set fits 1964 -1977 Chevelle and El Camino applications using the small block Chevy engine. This header fits vehicles using a manual transmission and factory linkage. The driver’s side header collector tucks down and under toward the oil pan in front of the oil filter to clear the factory z-bar and shifter linkage.

Shorter “header” spark plugs are recommended.

Includes all hardware necessary for installation.

SPECIFICATIONS:

Engine: Small Block Chevy 265-400
Primary Tube Diameter: 1-1/2″
Collector Diameter: 2.5″

FEATURES:

  • 16-Gauge Primary and Collector Tube Thickness
  • 3/8″ Thick Flange
  • Patented Flange Design Requires NO Gaskets
  • Tightest Fitting Header Available Anywhere!
  • Made in the USA

INCLUDES:

  • Header Bolt Set
  • Collector Reducer Set

FINISH:

Our Ceramic Coating is recommended for every vehicle application and is the default finish selection choice above. To meet high standards of quality, We apply a multi-layer inside and outside aluminized ceramic coating in-house and then polish the coating to a high luster. This aerospace and military-grade technology adds excellent protection to your headers while offering the benefit of thermal control in your engine bay. It also improves cylinder scavenging of exhaust gases and increases the longevity of your header investment.

Additional information

Weight18 lbs
Dimensions24 × 13 × 8 in
Header Finish

Silver Ceramic Coated, Black Satin Ceramic Coated, Plain Steel (raw metal)

Dimensions

Sanderson CC12 dimension graphic

Vortec-Based and BluePrint Style Heads

This informative article was written by Sam of Century Performance Center

NOTE: This issue concerns STRAIGHT PLUG Vortec-style small block Chevy cylinder heads, including the BluePrint heads

Vortec-style (and this includes some non-GM aftermarket) cylinder heads use a different spark plug location than common non-Vortec cylinder heads. Vortec-based heads move the spark plugs further from the center of the chamber and closer to the exhaust valve. This can cause a header clearance issue because it changes the spacing between the two center spark plugs, moving them 1/2″ closer together. On exhaust headers that have tight bends near the cylinder head (for example, the Sanderson CC158 header shown below), the dimpling of some tubes is required for spark plug clearance. Dimpling of other tubes is sometimes required on other header designs affected by the spark plug location and up-down angle.

BluePrint cylinder heads are based on the Vortec spark plug locations. However, the BluePrint heads are manufactured with a raised exhaust port exit. This changes the up-down angle of the spark plug in addition to the center-to-center distance of the two center spark plugs. Dimpling locations vary slightly between common Vortec-based and BluePrint header applications.

If unsure, please measure the center-to-center distance between the center pair of spark plugs on your heads. The standard distance is 4.5″ (11.43 cm) versus 4.0″ (10.16 cm) on the Vortec heads (See the image below). Additionally, one of the reasons we ask for the cylinder head brand, type, and the part number is that every Vortec-style cylinder head does not utilize the same spark plug location and angle. Having accurate information allows us to ensure that the proper dimpling is applied to the Sanderson header set for spark plug boot clearance during the manufacturing process.

Small block Chevy spark plug spacing. Vortec-style vs standard

Tube dimpling example, Sanderson CC158 for Vortec:

Sanderson CC158-P dimple

Installation Notes

  1. The Patented Leak-Free Design on Sanderson Headers provides the only leak-free flange design on the market … Do Not Attempt To Use Flange Gaskets! The raised flange on tube-style Sanderson Headers will buckle the gasket during tightening and actually cause a leak!  It is only OK to use a header gasket on the cast-series header sets (QP1000 and QP2000) Click here for the header installation procedure.
  2. Sanderson Headers are NOT emissions legal on pollution-controlled motor vehicles. It is the purchaser’s responsibility to verify local regulations for compliance.
  3. Wrapping your Sanderson Headers with ANY thermal tape voids your header warranty. The best thermal protection for your headers is our Aluminized Ceramic Coating which is available for every Sanderson Header. For additional information on why using header wraps is a problem, please read this tech article by Century Performance Center which addresses thermal coatings and header wraps.

Header Warranty

Sanderson Header WarrantyLimited 5-Year General Warranty

Sanderson Street Rod Headers strives to supply our customers with the highest quality parts and services available in the street rod industry. In keeping with this, we warrant and will repair or replace, at our option after an inspection in our facility, any of our products that are found by us to have failed due to defects in either material or workmanship.  This warranty is activated by the return of the Warranty Card enclosed with every pair of headers and is effective for FIVE YEARS * from the date of purchase as indicated on the original invoice.

This Warranty does not cover products that fail due to improper motor tuning, alteration, disassembly, or damage caused by racing, misuse, neglect, abuse, improper installation, and/or accident, or when used on applications for which they were not designed or approved. We are specifically not responsible for the costs of removal, installation, transportation, destruction of other components, inconvenience, loss of time, or other personal damages, or for any other associated costs including the application of aftermarket coatings applied by others. Sanderson Street Rod Headers shall not be liable for any and all consequential damages occasioned by the breach of any written or implied warranty pertaining to this sale in excess of the purchase price of the product(s) as found on the original invoice.

WRAPPING HEADERS WITH THERMAL TAPE VOIDS THE WARRANTY.

* Extremely compact header designs that locate the collector in close proximity to the exhaust ports are very sensitive to engine tuning. Improper air/fuel mix or timing of ignition and/or valvetrain can cause early failure due to excessive heat. For this reason,  part numbers CC2 and CC3 are offered with a two-year warranty period only. This includes header sets that utilize one of these headers as part of the set (part numbers CC4 and CC14 for example). The compact header side will hold a 2-year warranty. All other Warranty conditions apply.
